Amana® Electronic Non-Programmable Thermostat
PTAC & HVAC Parts & Accessories
0066482
Amana Appliances

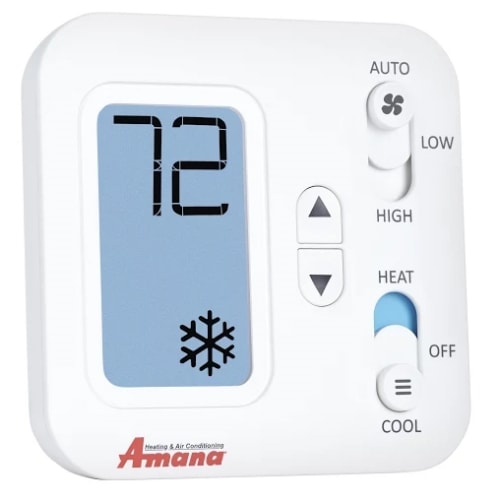

The Amana PHWT-A150H is a non-programmable electronic thermostat, which can be used with the following heating/cooling applications: Cooling/ Conventional PTAC Units (PTC) with or without Electric Heat. Heat Pump PTAC Units (PTH or HEH) with or without Electric Heat. Specifications: -Input Voltage: 19 to 30 VAC -Output Rating: Max. 1.5A per terminal (3A total) -Temperature Control: 45°F to 90°F (7°C to 32°C) -Temperature Accuracy: ± 1°F (± 0.5°C) -Wire Terminals: C 24 VAC Common GL Fan LOW Speed GH Fan HIGH Speed W2 2nd Stage or Auxiliary Heating Signal W1 1st Stage Heating Signal Y Cooling Signal R 24 VAC Hot B/O Reversing Valve Front Panel Controls Thermostat System Mode Switch Positions: HEAT = thermostat permits heating operation OFF = thermostat stops all heating or cooling functions COOL = thermostat permits cooling operation
