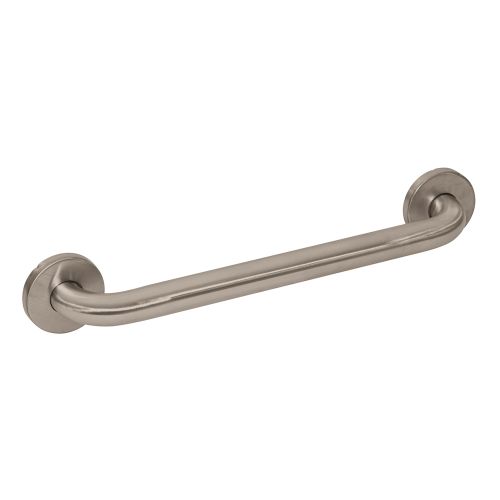

WingIts® Standard Stainless Steel Grab Bar, 18"x 1.25", Satin Finish
Part Number
0066567
Shipping Weight
1.43 lbs
Case Pack
1
MFG #WGB5SS18
Country Of Origin
China
$ / Each
1
Description
All parts are Stainless Steel - tubing is 18-gauge (1.2mm). Mounting Flanges are 3"(75mm) in diameter, 3/32"(2.5mm) thick, HeliArc welded to the tubing. Mounting Flanges have 5 holes for attachment to WINGITS or adequate blocking. Snap-On Flange Covers are 22 gauge (0.8mm) drawn stainless steel, 3"(76mm) in diameter and 3/8"(10mm) in height. Provide 1-1/2"(38mm) clearance from wall. WingIts® STANDARD stainless steel grab bars are weight-rated up to 800 lb, exceeding all building codes, Americans with Disabilities Act (ADA) compliance regulations, 2010 ADAAG and 2017 ANSI standards. Our grab bars are made with 100% reclaimed steel and only WingIts® sculpts 18-8 (304) - highest grade stainless steel for bath accessories. WingIts® bath products are designed to last and are suitable for indoor or outdoor use.
Shower Holder Included
No
Brand
WingIts
Collection
Other / Generic
Color / Finish
Satin, Stainless Steel
Width
18.0 in
- Rated up to 800 lbs. in drywall with tile
- Meets or Exceeds all building codes, Americans with Disabilities Act (ADA) compliance regulations, 2010 ADAAG, and 2017 ANSI standards
- Exceeds minimum requirement for pull-out in any direction, 250 lbs. for ADA and 300 lbs. for commercial building code
- Sculpted from 18/8 (304) stainless steel with a true 90-degree bend to provide unparalleled strength and durability
- Tri-linear Buff Technology results in unmatched mirror finish
- Mounting flanges are 3 inches (75mm) in diameter, 3/32 inches (2.5mm) thick, HeliArc® welded to the tubing
- Mounting flanges have 5 holes for attachment to WingIts® or adequate blocking
WingIts® Standard Stainless Steel Grab Bar, 18"x 1.25", Satin Finish
$ / Each
1
Contact your sales consultant to place an order | 1-800-772-7676 | guestsupply.com
