0072894

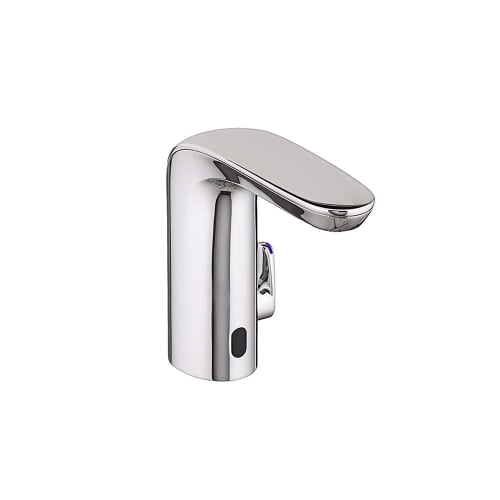

American Standard NextGen Selectronic Single Handle Sensor Bathroom Faucet, 0.5 gpm, Chrome- Features
- Specifications
- Warranty
- 0.5 gpm pressure compensating, vandal-resistant multi-laminar spray
- Deck-mount electronic faucet with proximity operation
- CR-P2 lithium battery preinstalled in the faucet
- SmarTherm® Safety Shut-Off: Integral thermostatic hot water temperature limiter meets ASSE 1070 without a separate thermostatic mixing valve
- Above-Deck Mixing: Allows user to manually adjust temperature. Adjustable hot limit stop. Red & blue indicators
- Removable Mixing Handle: Installer can set temperature and remove handle to prevent user adjustment
- Dual Inlets: For hot and cold water. Check valves included to prevent cross flow. Filter assemblies protect the solenoid valve from debris
- Hygienic, touch-free operation
- Clean, Integrated Design: All electronics contained in faucet spout. No control box below deck
- Lead-Free
ADA Compliant: Yes
ANSI Specifications: [ANSI A112.18.1, ANSI 117.1]
ASME Specifications: ASME A112.18.1
Application: Commercial
Bathroom Faucet Type: Electronic
Battery Type: Lithium
Built-In Grinder: No
CARB OTC LEED Compliant: No
CEC Compliant: For Sale in CA
CSA Certified: CSA B125
Center Size: 8 in
Collection: NextGen™ Selectronic®
Color Finish: Polished Chrome
Color Finish Category: Chromes
Deck Plate Included: No
Depth: 6-7/8 in
EPA Compliant: No
End Connection 1: Compression
End Connections: Compression
Faucet Connection: Compression
Faucet Connection Size: 3/8 in
Faucet Height: 5-3/4 in
Faucet Material: Metal
Faucet Mount: Top Mount
Faucet Type: Electronic
Faucet Valve Type: Solenoid
Fitting Size 1: 3/8 in
Fitting Sizes: 3/8 in
Flow Rate: 0.5 gpm
GSA Approved: No
Handle Type: Lever
Height: 5-3/4 in
IAPMO Listed: Yes
Installation Type: Deck Mount
Lead Law Compliant: Yes
Length: 6-7/8 in
Material: Metal
Maximum Pressure: 120 psi
NSF Certified: Yes
Number of Handles: Single Handle
Number of Holes: 1 Hole
Power Source: Battery
Size: 6-7/8 in x 1-7/8 in
Spout Height: 5 in
Spout Reach: 4-469/500 in
Spout Type: Stationary
Toilet Bowl Length: 6-7/8 in
Trim Only: No
WaterSense Labeled: No
Width: 1-7/8 in
- For all industrial, commercial and business usage the warranty period is five years, from date of purchase and except for duration, all other aforementioned warranty terms apply.
- For both Residential and Commercial warranties, batteries are not included in the warranty. American Standard will provide free of charge, at it's sole option, replacement part(s) or product (or if no longer available, a comparable product) to replace those which have proven defective in materials orworkmanship.
- This warranty does not cover labor charges incurred and/or damage sustained in installation, repair or replacement, nor incidental or consequential damages.
- This warranty is applicable only to American Standard faucets manufactured after June 1, 1996 and installed in the United States, Mexico and/or Canada.
- THIS WARRANTY IS EXCLUSIVELY IN LIEU OF ALL OTHER WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
- This warranty gives the original consumer purchaser of an American Standard faucet specific legal rights which may vary from state to state or from province to province.
- In some states or provinces the exclusion or limitation of incidental or consequential damages is not allowed, so those exclusions may not apply to you.
